Public Ownership

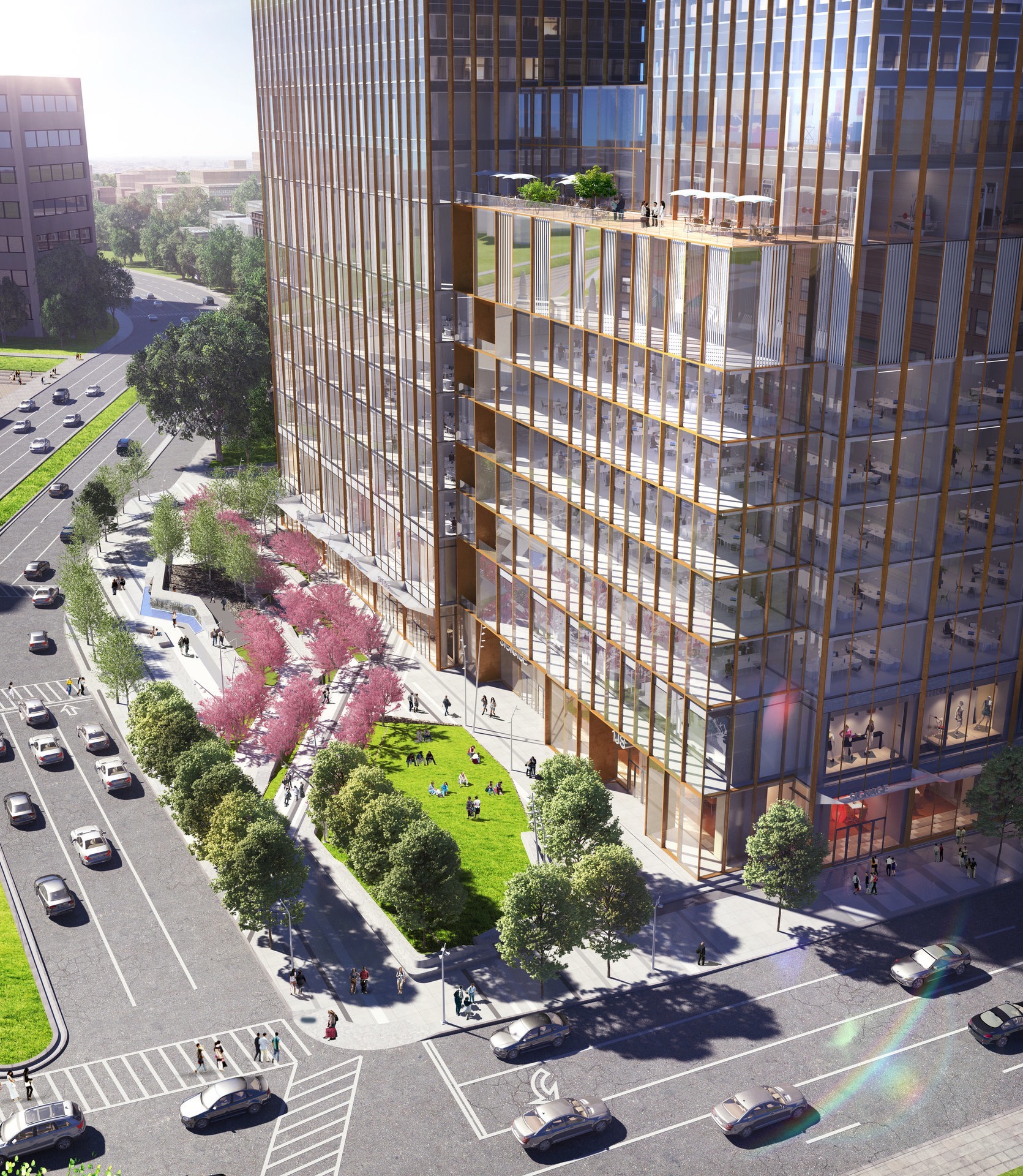

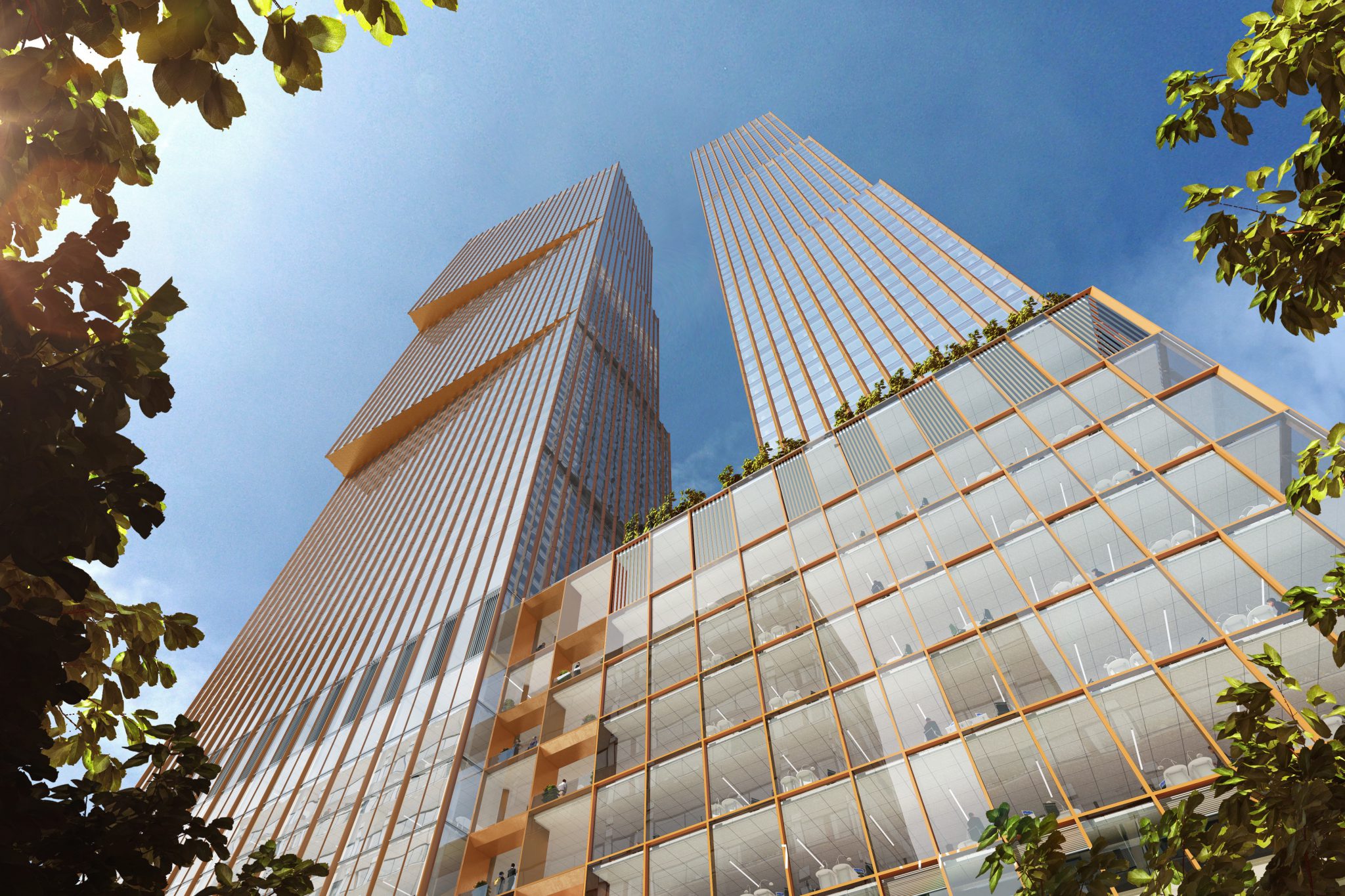

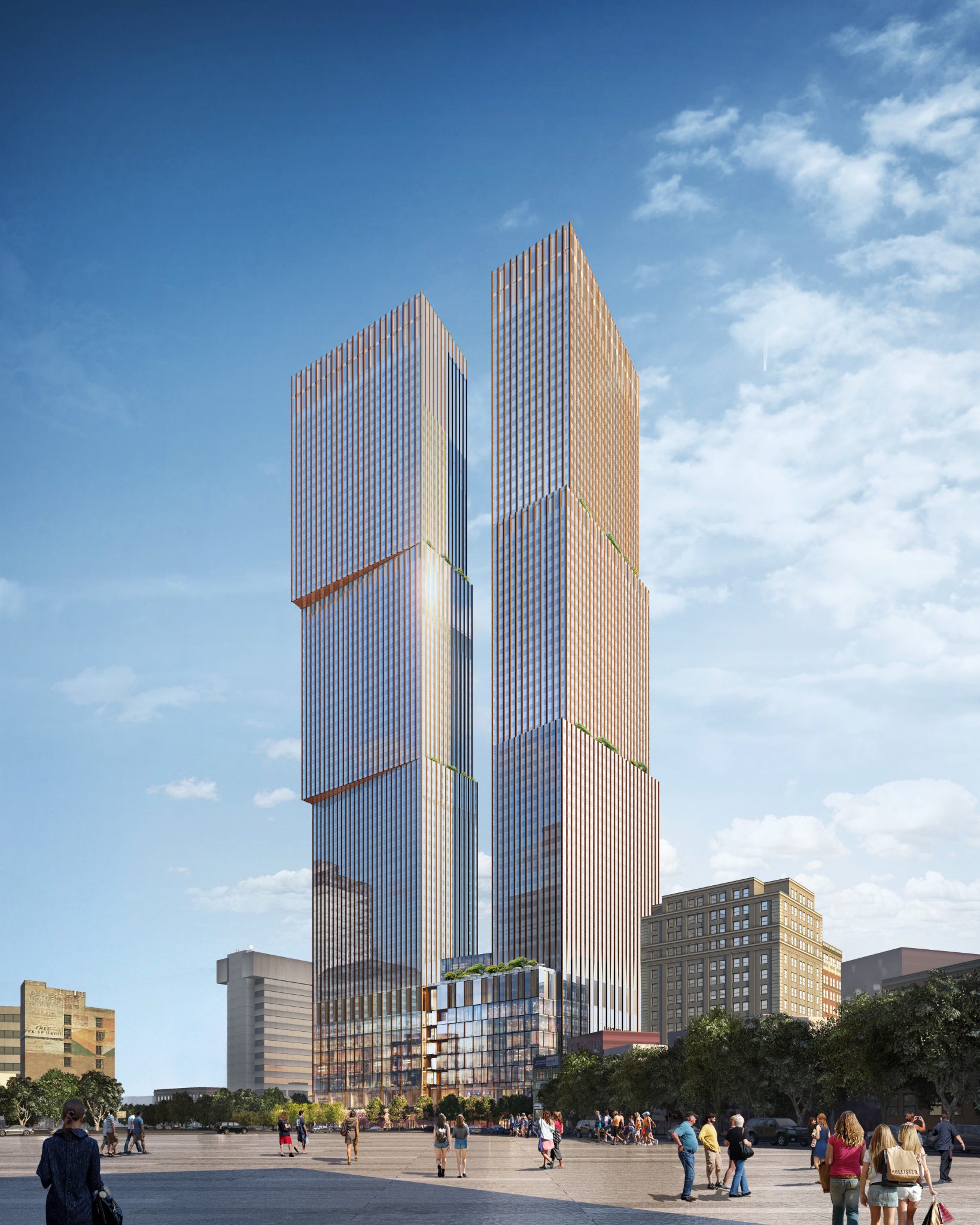

Two towers pivot around a corner axis to create a dynamic form in response to the oblique approaches of the non-orthogonal road network. Retail programs are designed to activate the new plaza, create new destinations, and fulfill the needs of an emerging community.

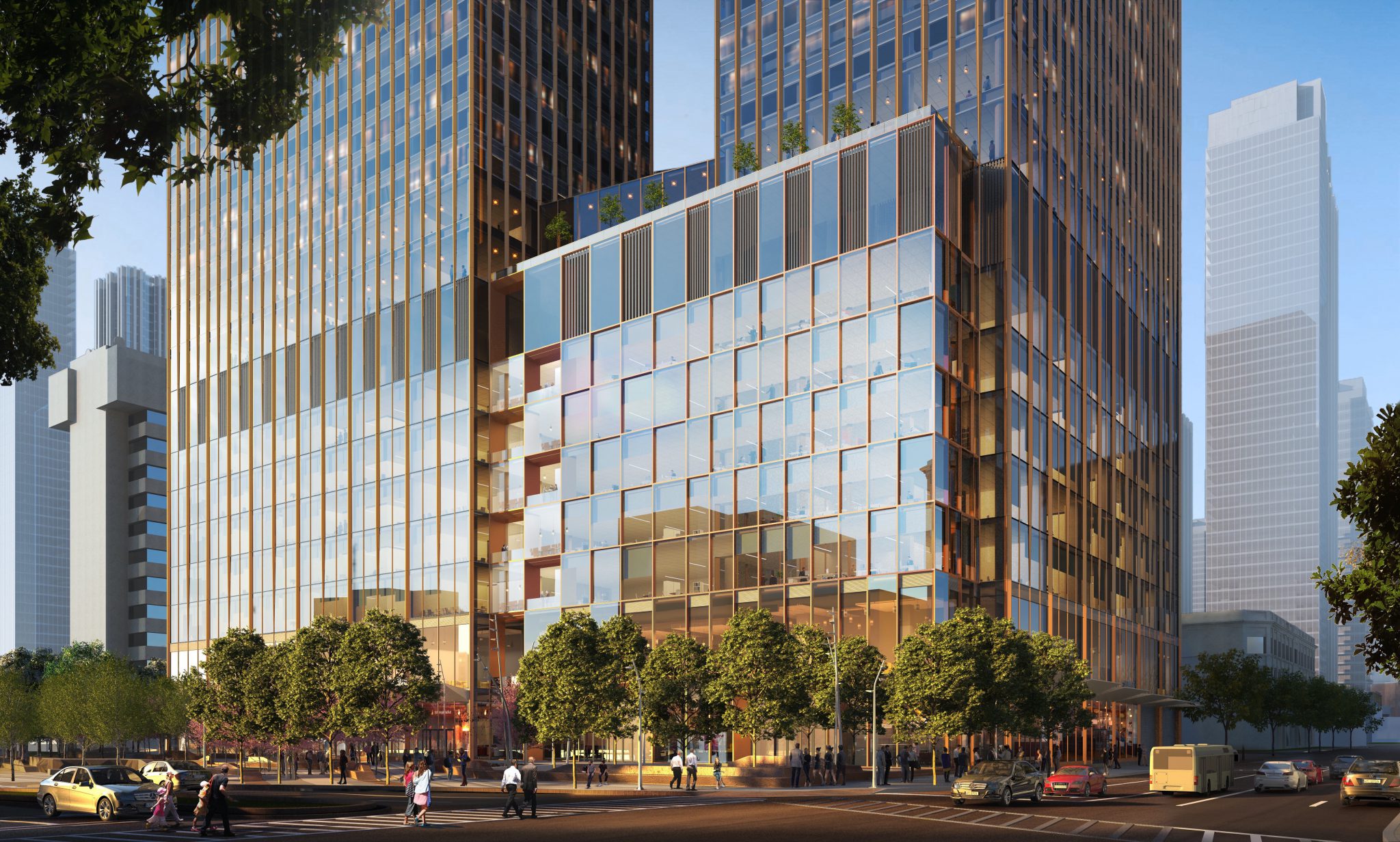

The 2 million-square-foot mixed-use project has a 10-story, mixed-use podium with a cellar including: separate ground level lobbies, reception and mail room services for residential towers 1 & 2, as well as access to an above grade parking garage, and below grade loading areas and building services. Retail space is provided on the ground level and second level and is directly accessible from the building exterior terraces. There are five office floors. The two towers will provide 756 units of rental apartments for a total of 1512 units. Both sit on two floors of shared amenity including a full size basketball court and pool.

‘People Architecture’ at great heights Q&A with David Brown

1. What was the technological approach to designing a tower of this height?

The technological approach to designing One Journal Square, a reinforced concrete structure, involves a lateral system featuring belt trusses on the 11th, 34th, and 64th floors, which coincide with the mechanical floors. Wind tunnel tests revealed a composite interaction between the two towers, where one shields the other from high winds, allowing for smaller columns and a lighter lateral system than would be needed for a single tower. The façade also incorporates a curtain wall system with structurally glazed mullions for a sleek, minimalist look, and operable windows in each room ensure natural ventilation.

2. What impact will this building have on the surrounding community/how is it people-centric?

The impact of One Journal Square on the surrounding community is significant, as it’s designed to revitalize Journal Square through new public plazas, laneways, and a striking architectural presence. The design uses two stepped towers that blend verticality with the surrounding neighborhood, while the podium creates a smooth transition to the local scale – creating a building that suits its surroundings.

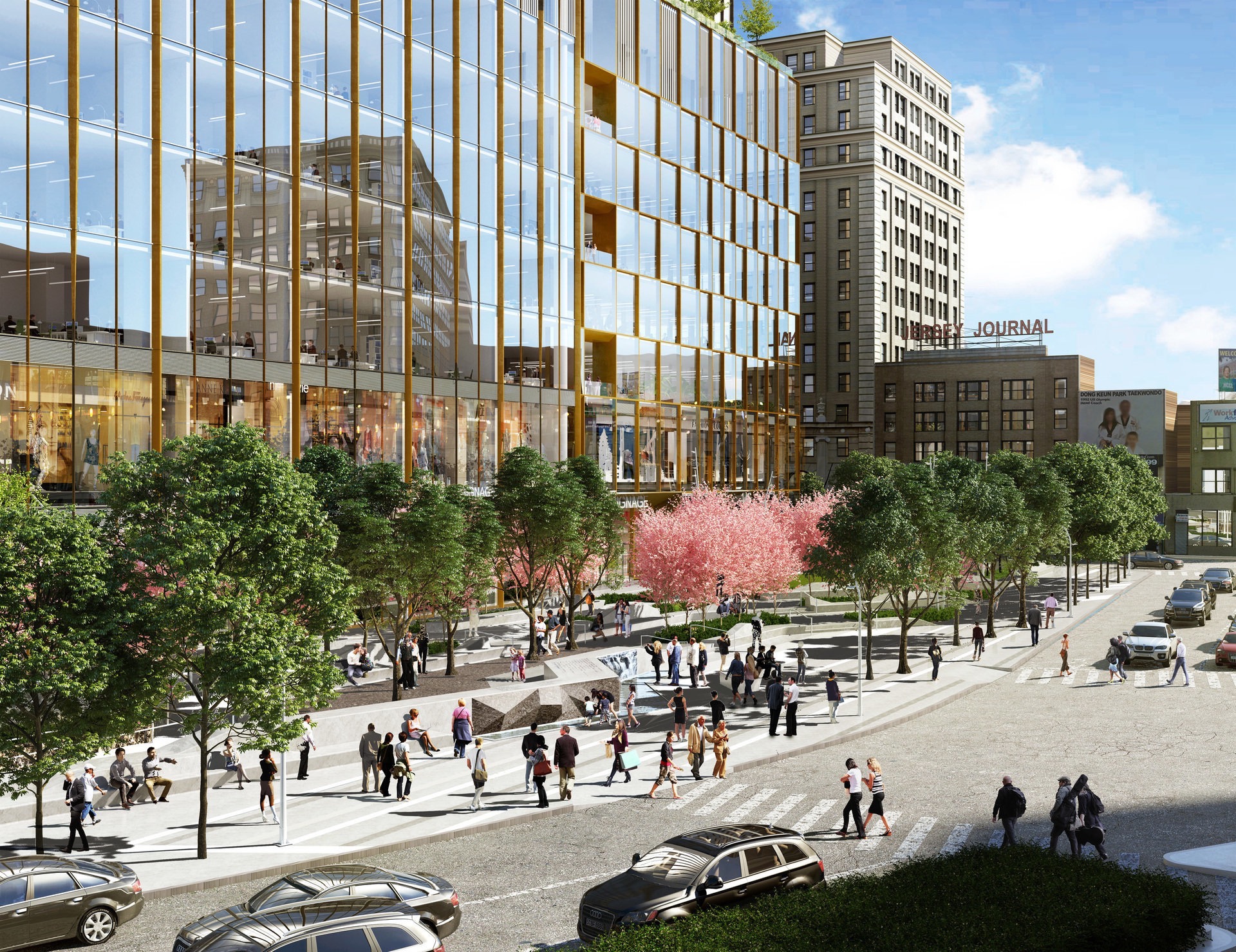

The development also caters to its emerging community by activating the plaza with retail spaces and other new destinations. Residents and neighbours will further benefit from Journal Square’s transformation into an arts-focused area, connecting with landmarks like the renovated Loews Theater and the upcoming Centre Pompidou partnership. The plaza itself offers community-focused amenities, including a 9/11 Memorial, seating, event space, and a lawn for art displays.

With 1,720 residential units, One Journal Square was designed to hide parking within its podium, ensuring that the parking garage is not visible from public areas. The building’s amenities emphasize wellness and community, featuring co-working spaces, lounges, fitness facilities, and recreational areas like a climbing wall, swimming pools, and outdoor terraces, all aimed at enriching residents’ lives and fostering a sense of community.

3. What’s unique about designing a tall tower/what challenges did you need to overcome? 

Designing tall towers is not just about creating impressive skylines; it’s about transforming urban living.

For the majority of tall towers, the journey begins with the vital task of transitioning from a horizontal environment to a striking vertical presence. Architects have to ensure that their designs harmonize with the surrounding context and stay committed to creating structures that respect local character throughout a project’s lifetime.

Structural integrity is also paramount with tall towers because they must withstand significant lateral forces, particularly from wind, which requires innovative solutions.  Through advanced wind tunnel testing and the use of bracing systems or belt trusses, tall buildings can achieve unparalleled stability while minimizing visual clutter.

Moreover, successful tall towers prioritize placemaking. By incorporating vibrant public spaces at their bases—like plazas and retail areas—they foster community interaction and create lively urban environments. Amenities are equally crucial; offering fitness centers, lounges, and outdoor spaces not only attracts residents but also nurtures wellness and social connections – as with One Journal Square.

Ultimately, well-designed tall towers redefine skylines and enrich urban life, making them invaluable assets to any city.
